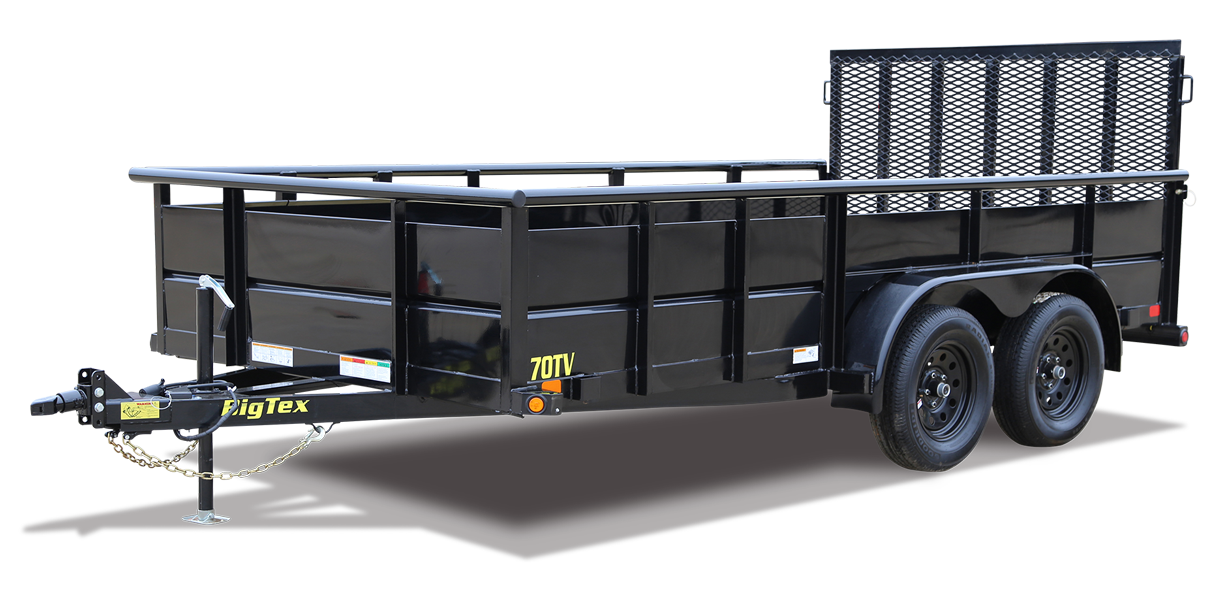

70TV Tandem Axle Vanguard
Standard Features
- (4) Tie Down Loops Inside Bed
- (4) Tie Down Pockets on Outside Frame
- Forged, 7,000# Coupler
- Fold Back/Wrap Tongue (14’ & Longer)
- Set-Back Jack
- EZ Lube Hubs
- Dexter Brand Axles
- Nev-R-Adjust Electric Brakes
- Cambered Axles
- 2-3/8” Pipe Top Rail
- 29-3/8” Tall Sides w/ 24” V-Crimped Steel Panels
- Tear Drop Style Fenders
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Protected Wiring
- Removable Sand Foot on Jack
- Complete Break-A-Way System w/Charger
- Radial Tires “new!
*Picture may show optional items
| G.V.W.R. | 7,000# |
| G.A.W.R. (Ea. Axle) | 3,500# |
| Coupler | 7K 2” Forged Coupler |
| Safety Chains | 1/4” Grd. 70 w/Safety Latch Hook (2 each) |
| Jack | 2K Top Wind-Set Back (Bolted On) |
| Tongue | 4” Channel Fold Back Tongue |
| Top Rail | 2-3/8” Pipe Top Rail |
| Frame | 4” x 3” x 1/4” Angle |
| Crossmembers | 3” x 2” x 3/16” Angle |
| Sides | 3” x 2” x 3/16” Angle |
| Fenders | 9” x 72” Tear Drop |
| Axles | (2) 3,500# EZ Lube w/ (1) Elec. Brake |
| Suspension | Multi-Leaf Spring w/ Equalizer |
| Tire | ST205/75R-15 Load Range C |
| Wheel | 15″ x 5″ White Spoke 5 on 5 Bolt Pattern |
| Floor | 2” Treated Pine od DOuglas Fir* |
| Lights | LED D.O.T. Stop, Tail, Turn, & Clearance |
| Elec. Plug | 7-Way RV |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish |
Specs
| Model# | Weight | Description |
|---|---|---|
| 70TV-12 | 1,665# | 83” x 12’ Tandem Axle Vanguard |
| 70TV-14 | 1,755# | 83” x 14’ Tandem Axle Vanguard |
| 70TV-16 | 1,845# | 83” x 16’ Tandem Axle Vanguard |
| 70TV-18 | 1,935# | 83” x 18’ Tandem Axle Vanguard |
| Dimensions | |||
|---|---|---|---|
| Length | A | B | C |
| 12’ | 145-1/2” | 85” | 60-1/2” |
| 14’ | 169-1/2” | 103” | 66-1/2” |
| 16’ | 193-1/2” | 115” | 78-1/2” |
| 18’ | 217-1/2” | 127” | 90-1/2” |
*Weights shown are for base models without options and are estimates only.
Options
| Category | Description |
|---|---|
| COUPLERS | 2-5/16” Stamped Coupler |
| COUPLERS | 2-5/16” Forged Coupler |
| JACKS | 2,000# Fold-Up Jack |
| JACKS | 7,000# Drop-Leg Jack | BRAKES | Electric Brakes on 2nd Axle |
| BRAKES | Hydraulic Surge Brakes 1 Axle w/ Balcrank Actuator |
| BRAKES | Hydraulic Surge Brakes 2 Axles w/ Balcrank Actuator |
| TIRE/WHEEL | Spare Tire Mount (Side) |
| TIRE/WHEEL | Spare Tire (ST205/75R-15 LR-C) |
| TIRE/WHEEL | Tire Upgrade (ST225/75R-15 LR-D) |
| TIRE/WHEEL | Spare Tire Upgrade (ST225/75R-15 LR-D) |
| RAMPS | 4' Tall Rear Rampgate |
| RAMPS | 5' Tall Rear Rampgate |
| RAMPS | 4' Heavy Duty Integrated Rampgate w/Gas Shock Assist |
| RAMPS | Gas Shock Assist Option for Rampgate |
| BODY | 1/8” Diamond Plate Steel Floor (Per Square Foot) |
| CARGO CONTROL | Bolt-On Landscape Box (24" x 24" x 87") |
| CARGO CONTROL | 3-Place Trimmer Racks (Bolt On) |
| CARGO CONTROL | 5-Place Tool Holder (Bolt On) |
| CARGO CONTROL | Additional Tie Loops (Each) |
| CARGO CONTROL | Additional Tie Down Pockets (Each) |
