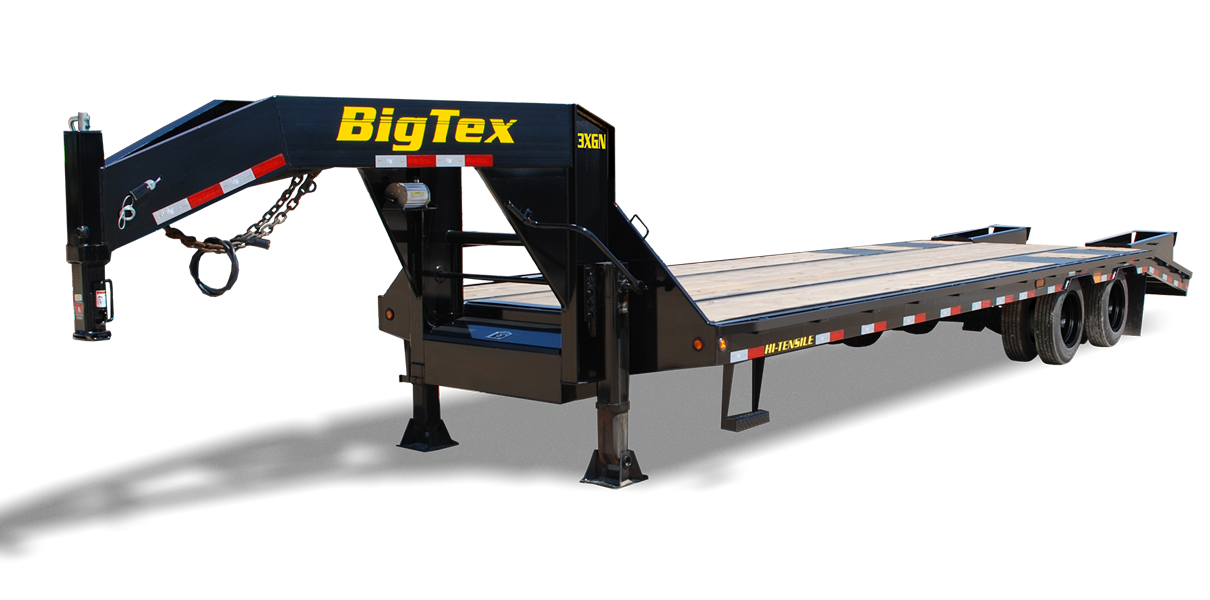

3XGN
Super Duty Tandem Dual Gooseneck
Haul big and heavy with the 3XGN Super Duty Tandem Dual Gooseneck Trailer, a super heavy-duty gooseneck trailer that’s packing 15,000-lb axles to transport the heaviest equipment—even in difficult and rugged conditions. That’s why this trailer is designed with a 30,000 lbs G.V.W.R., giving construction contractors, industrial operations, and heavy equipment dealers the strength and dependability needed to handle their day-to-day grind. From top to bottom, it’s built to work hard just like you do.
With you for the long haul
Standard Feature | Available Options | |
---|---|---|
Axles | 2 - 15,000# Dual Wheel w/ Oil Bath & Valcrum Caps | |
Brakes | Forward Self-Adjusting Electric Brakes on Both Axles | Air Brake Assembly w/ABS on Front, Spring Brake Chambers & Auto Slacks Electric Over Hydraulic Brakes (Drum) |
Suspension | Heavy Duty 44,000# Adjustable | |
Coupler | 2-5/16” Ball, Adjustable Square Crank | |
Safety Chains | 1/2" Grade 80 w/ Safety Latch Hook (2 ea) | |
Jack | Dual Two Speed Landing Gear- 50K lbs. Capacity (Bolted On) | Dual Electric Over Hydraulic Landing Gear by Stillwell™ |
Frame | 12" I-Beam, 22# up to 30'. 14" I Beam on 30'+ Long | |
Cross-Members | 6" I-Beam, 16" Centers | |
Floor | Treated Pine Floor | |
Ramps | 5’ Double Hinged Spring Assist Flip-Over Ramps, (STA Models Do Not Include Ramps) | |
Dovetail | 5' Cleated Dovetail (Standard on D5A Models) Straight Deck (available on 36' and 40' lengths) | |
Stake Pockets | Stake Pockets Along Both Sides, 24" O.C. (Quantity Varies by Length) | |
Trailer Plug | 7-Way RV | |
Lights | Recessed, Grommet-Mounted L.E.D. Lighting | |
Wiring | Sealed, Modular Cold-Weather Wiring Harness | |
Tires | ST215/75 R-17.5 Load Range H (Dual) | |
Bolt Pattern | 8-Bolt | |
Wheels | 17.5" HC x 6.75", 8x275 MM BC Hub Pilot; Dual Wheel | |
Spare Mount | Top of Neck Spare Tire Mount | |
Spare Tire | Spare Tire & Wheel (ST215/75 R-17.5 LR-H) | |
Paint Type | Professional Finish w/ Primer Standard | |
Paint Color | Black | |
Rubrail | 3/8” Heavy Duty Rub Rail on Both Sides | |
Break-Away Kit | Complete Breakaway System w/ Zip™ Breakaway Cable and Charger | |
Mudflaps | Standard | |
Storage | Front Lockable Toolbox Uprights | Low Profile Tool Box 12” x 18” x 36” (Side Mount) Removable Deck on the Neck- Bolt On (8' W x 6' L) |
Cargo Winch | Sliding Winch Track (standard on Trailer 28' or Longer ) | 4" Sliding Winch (Each) 4" Weld-On Winch (Each) Sliding Winch Track (Per 6' Section), for trailers less than 33' long |
Pipe Chain Spools | 1-1/4” Pipe Chain Spools Between Stake Pockets Pockets | 4" x 30' Strap Extra 5/8" D-Rings |
Steps & Handles | (2) Retractable Side Bed Steps + Handles | |
Twist Guard™ | Included on trailers 28' and Longer |
Model | Pull Type | GVWR | GAWR (Ea. Axle) | Tail Type | Empty Weight | Cargo Capacity | Bed Length | Bed Width | Tongue Length |
---|---|---|---|---|---|---|---|---|---|
3XGN-20+5 | Gooseneck | 30000 lbs | 15000 lbs | Dovetail | 6980 lbs | 23020 lbs | 25' | 102" | 97" |
3XGN-25+5 | Gooseneck | 30000 lbs | 15000 lbs | Dovetail | 8440 lbs | 21560 lbs | 30' | 102" | 97" |
3XGN-28+5 | Gooseneck | 30000 lbs | 15000 lbs | Dovetail | 9140 lbs | 20860 lbs | 33' | 102" | 97" |
3XGN-30+5 | Gooseneck | 30000 lbs | 15000 lbs | Dovetail | 9800 lbs | 20200 lbs | 35' | 102" | 97" |
3XGN-36 | Gooseneck | 30000 lbs | 15000 lbs | Straight Deck | 9290 lbs | 20710 lbs | 36' | 102" | 97" |
3XGN-35+5 | Gooseneck | 30000 lbs | 15000 lbs | Dovetail | 10200 lbs | 19800 lbs | 40' | 102" | 97" |
3XGN-40 | Gooseneck | 30000 lbs | 15000 lbs | Straight Deck | 10370 lbs | 19630 lbs | 40' | 102" | 97" |
WARNING: This product can expose you to chemicals including Arsenic (inorganic arsenic compounds) which is known to the State of California to cause cancer and Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
