22GN
Tandem Dual Wheel Gooseneck
Ready for the ultimate gooseneck trailer? A premium trailer providing long-lasting durability, the 22GN Tandem Dual Flatbed Gooseneck Trailer is built to work the toughest jobs in the most rugged conditions. From its dual 2-Speed 50K landing gear to HD adjustable suspension, it’s designed to handle heavy-duty hauling needs, particularly for transporting heavy construction equipment and hotshotting.
With you for the long haul
| Standard Feature | Available Options | |
|---|---|---|
| Axles | 2 - 10,000# Dual Wheel w/ Oil Bath & Valcrum Caps | |
| Brakes | Forward Self-Adjusting Electric Brakes on Both Axles | Electric Over Hydraulic Brakes (Disc) |
| Suspension | Heavy-Duty 30,000#, Adjustable | |
| Coupler | 2-5/16” Demco EZ Latch Gooseneck Coupler | |
| Safety Chains | 3/8" Grade 70 w/ Safety Latch Hook (2 ea) | |
| Jack | Dual Two Speed Landing Gear- 50K lbs. Capacity (Bolted On) | Dual Electric Over Hydraulic Landing Gear by Stillwell™ |
| Frame | 12" I-Beam, 19# | |
| Cross-Members | 3" Channel | |
| Floor | Treated Pine Floor | Blackwood Pro Rubber Infused Lumber Floor (per linear foot) |
| Ramps | 5’ Double Hinged Spring Assist Flip-Over Ramps, (STA Models Do Not Include Ramps) | Flip-Over Ramps (Standard on D5A Models) 8' Rear Slide-In Ramps (Available on STA models Only) No Ramps (Standard on STA models) (2) 5' MEGA Ramps (Available on D5A Models Only) |
| Dovetail | 5' Cleated Dovetail (on D5A models only) | |
| Stake Pockets | Stake Pockets Along Both Sides, 24" O.C. (Quantity Varies by Length) | |
| Trailer Plug | 7-Way RV | |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting | |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness | |
| Tires | ST235/80 R-16 Load Range E (Dual) | Tire Upgrade (ST235/80 R-16 LR-G) Includes Spare Tire Upgrade (ST215/75 R-17.5 LR-H Dual) Includes Spare |
| Bolt Pattern | 8-Bolt | |
| Wheels | Black Mod | |
| Spare Mount | Top of Neck Spare Tire Mount | |
| Spare Tire | ST235/80 R-16 Load Range E (Included)` | |
| Paint Type | Professional Finish w/ Primer Standard | |
| Paint Color | Black | |
| Rubrail | 3/8” Heavy Duty Rub Rail on Both Sides | |
| Break-Away Kit | Complete Breakaway System w/ Zip™ Breakaway Cable and Charger | |
| Mudflaps | Standard | |

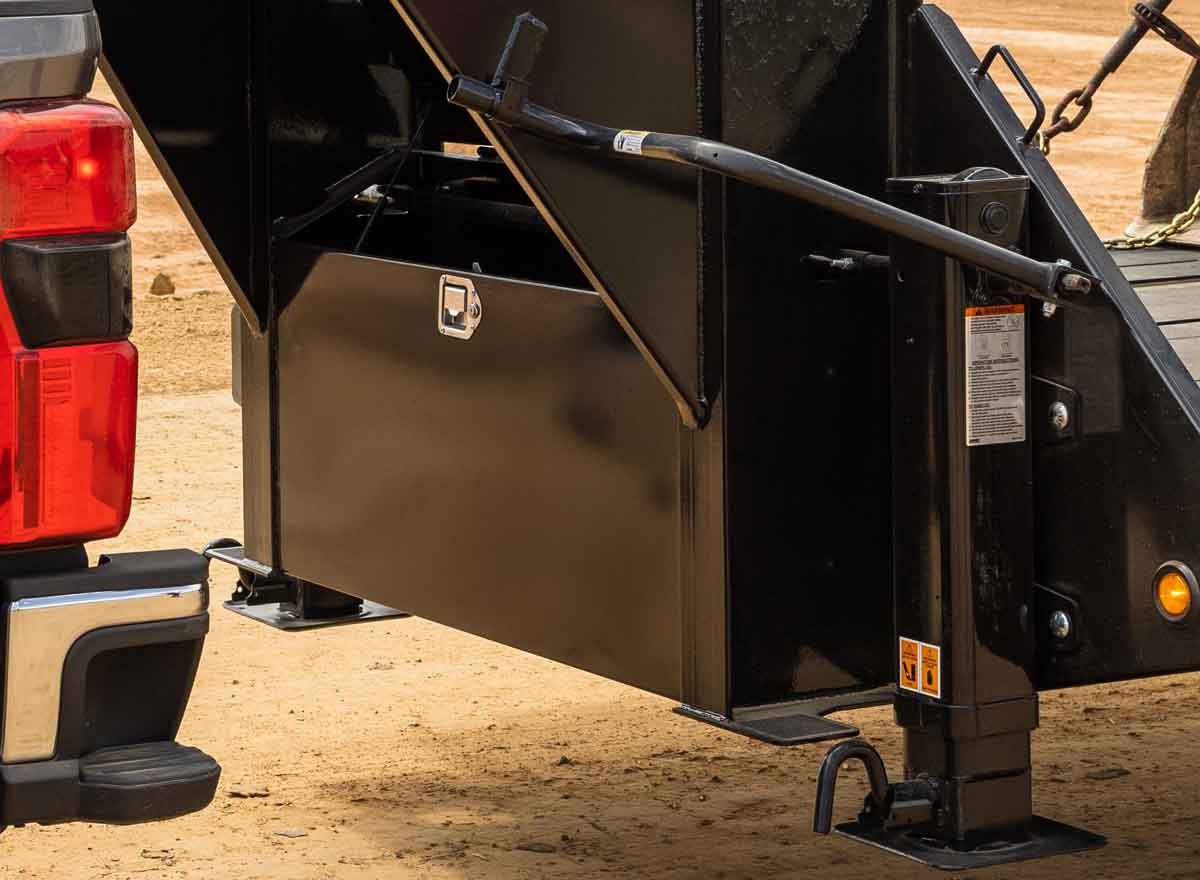

| Storage | Front Lockable Toolbox Uprights w/ Chain Holder | Low Profile Tool Box 12” x 18” x 36” (Side Mount) Removable Deck on the Neck- Bolt On (8' W x 6' L) |
| Cargo Winch | Sliding Winch Track (standard on Trailer 33' or Longer ) | 4" Sliding Winch (Each) 4" Weld-On Winch (Each) Sliding Winch Track (Per 6' Section), for trailers less than 33' long |
| Pipe Chain Spools | 1-1/4” Pipe Chain Spools Between Stake Pockets Pockets | 4" x 30' Strap Extra 5/8" D-Rings |
| Steps & Handles | (2) Retractable Side Bed Steps + Handles Helping Hand Riser Step | |
| Twist Guard™ | Included on trailers 33' and Longer | |
| Work Light | Deck Work Light Package w/ Step Illumination |
| Model | Pull Type | GVWR | GAWR (Ea. Axle) | Tail Type | Empty Weight | Cargo Capacity | Bed Length | Bed Width | Tongue Length |
|---|---|---|---|---|---|---|---|---|---|
| 22GN-20STA | Gooseneck | 23900 lbs | 10000 lbs | Straight Deck | 5240 lbs | 18660 lbs | 20' | 102" | 97" |
| 22GN-25D5A | Gooseneck | 23900 lbs | 10000 lbs | Dovetail | 6690 lbs | 17210 lbs | 25' | 102" | 97" |
| 22GN-25STA | Gooseneck | 23900 lbs | 10000 lbs | Straight Deck | 5900 lbs | 18000 lbs | 25' | 102" | 97" |
| 22GN-28STA | Gooseneck | 23900 lbs | 10000 lbs | Straight Deck | 6300 lbs | 17600 lbs | 28' | 102" | 97" |
| 22GN-30D5A | Gooseneck | 23900 lbs | 10000 lbs | Dovetail | 7460 lbs | 16440 lbs | 30' | 102" | 97" |
| 22GN-30STA | Gooseneck | 23900 lbs | 10000 lbs | Straight Deck | 6570 lbs | 17330 lbs | 30' | 102" | 97" |
| 22GN-33D5A | Gooseneck | 23900 lbs | 10000 lbs | Dovetail | 7920 lbs | 15980 lbs | 33' | 102" | 97" |
| 22GN-33STA | Gooseneck | 23900 lbs | 10000 lbs | Straight Deck | 6970 lbs | 16930 lbs | 33' | 102" | 97" |
| 22GN-35D5A | Gooseneck | 23900 lbs | 10000 lbs | Dovetail | 8130 lbs | 15770 lbs | 35' | 102" | 97" |
| 22GN-35STA | Gooseneck | 23900 lbs | 10000 lbs | Straight Deck | 7240 lbs | 16660 lbs | 35' | 102" | 97" |
| 22GN-36STA | Gooseneck | 23900 lbs | 10000 lbs | Straight Deck | 7370 lbs | 16530 lbs | 36' | 102" | 97" |
| 22GN-40D5A | Gooseneck | 23900 lbs | 10000 lbs | Dovetail | 8790 lbs | 15110 lbs | 40' | 102" | 97" |
| 22GN-40STA | Gooseneck | 23900 lbs | 10000 lbs | Straight Deck | 8200 lbs | 15700 lbs | 40' | 102" | 97" |
