Trailers / Utility & Landscape Trailers

35UT 35UT

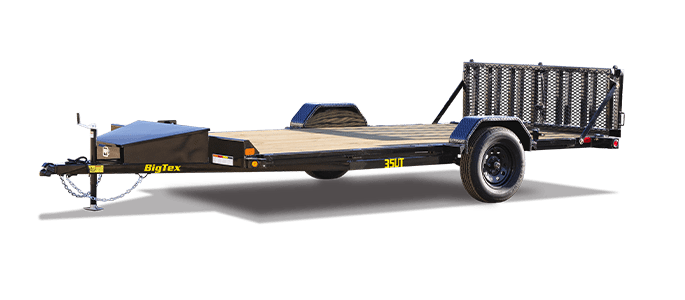

Big Tex Single Axle UTV Hauler

35UT

Single Axle UTV Hauler

Got big toys? Say hello to the 35UT Single Axle UTV Hauler, a 14’ UTV trailer that’s built for efficiency, convenience, and, most importantly, fun. Designed for toy hauling, this 83-inch wide, open-side frame trailer makes loading and unloading ATVs and UTVs faster and easier. And with a 2,995 lbs G.V.W.R., the 35UT has the strength that’s needed to haul your off-road vehicles to wherever the fun is happening.

With you for the long haul

Standard Feature Available Options
Axles 3,500# Premium, Cambered Axle with Quick-Lubricating Hubs
Brakes Brake Flanges for Easy Brake Addition Electric Brakes w/ Complete Break-Away Kit
Suspension Multi-Leaf Spring
Coupler 2" Demco EZ- Latch
Safety Chains 1/4" Grd. 30 w/ Safety Latch Hook (2 ea)
Jack 2,000# Top Wind, Set-Back Jack
Frame 4" Channel
Cross-Members 2" x 2" Angle
Front Stop Rail Fabricated Front Stop Rail
Floor Treated Pine Floor Blackwood Pro Rubber Infused Lumber Floor (per linear foot)
Fenders Removable Tread Plate Fenders

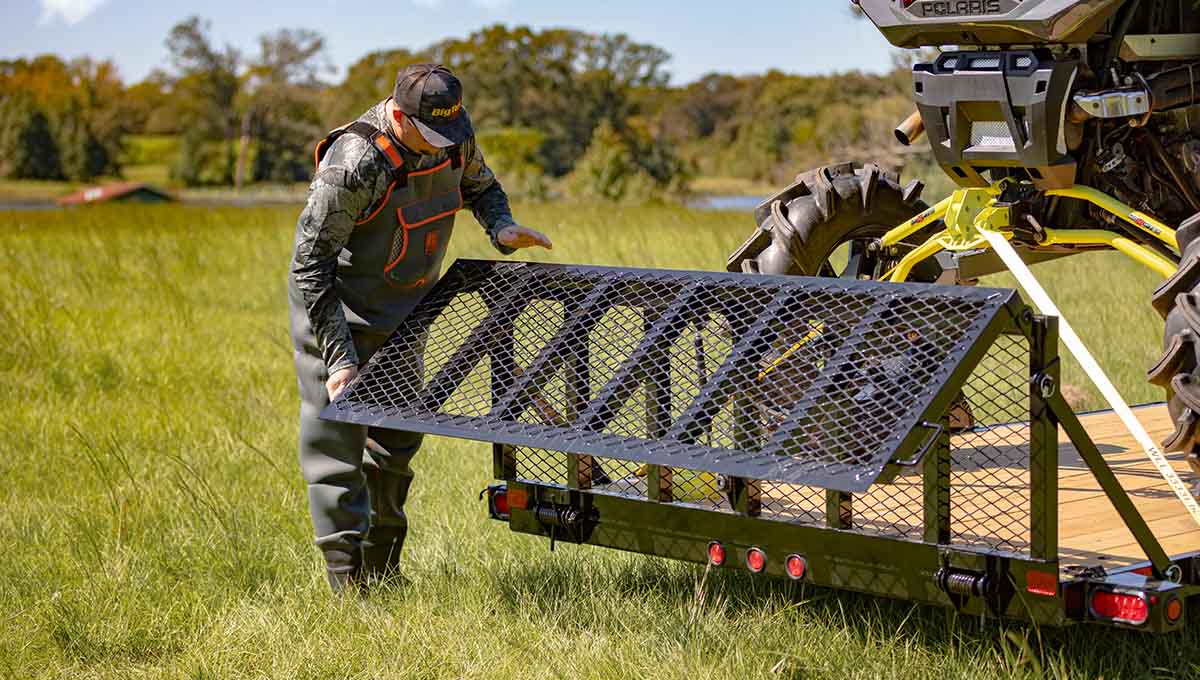

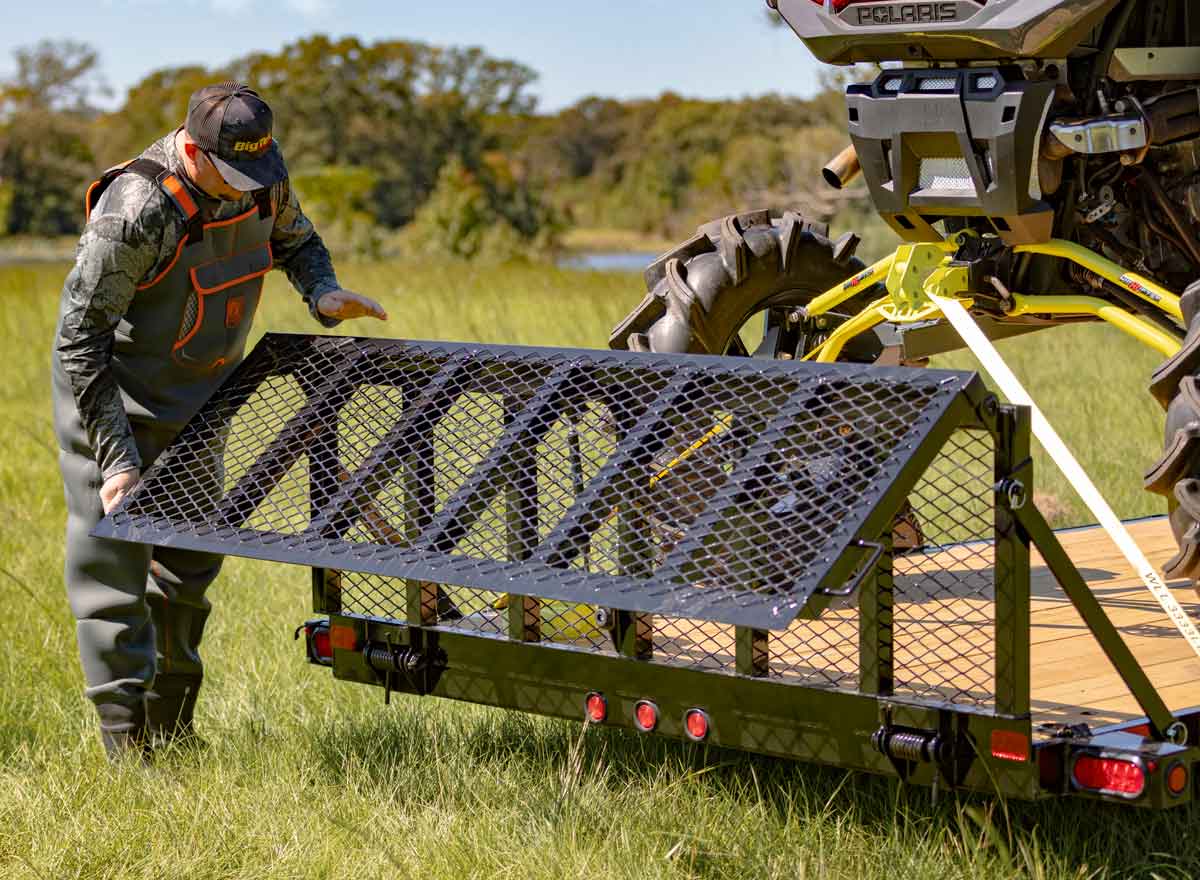

Ramps Bi-Fold Rear Ramp Gate with Spring Coil Assist 4' Slide-In Angle Ramps
Stake Pockets (8) Stake Pockets (4 on each side) Additional Stake Pockets (Each)
Trailer Plug 4-Way Flat w/ Loom
Lights L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Wiring Grommet-Mounted Lifetime L.E.D. Lighting
Tires ST205/75 R-15 Load Range C
Bolt Pattern 5 Bolt
Wheels Upgrade to Aluminum Wheels w/ Black Trim (ST205/75-15 LR-C)
Spare Mount Side Spare Tire Mount
Spare Tire Spare Upgrade to Alum. Wheels w/ Black Trim (ST205/75-15 LR-C)
Paint Type Professional Finish w/ Primer Standard
Paint Color Black

View Color Options

Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow
Rubrail Rub Rail Along Both Sides
Tie-Downs (4) D-Rings to secure vehicle

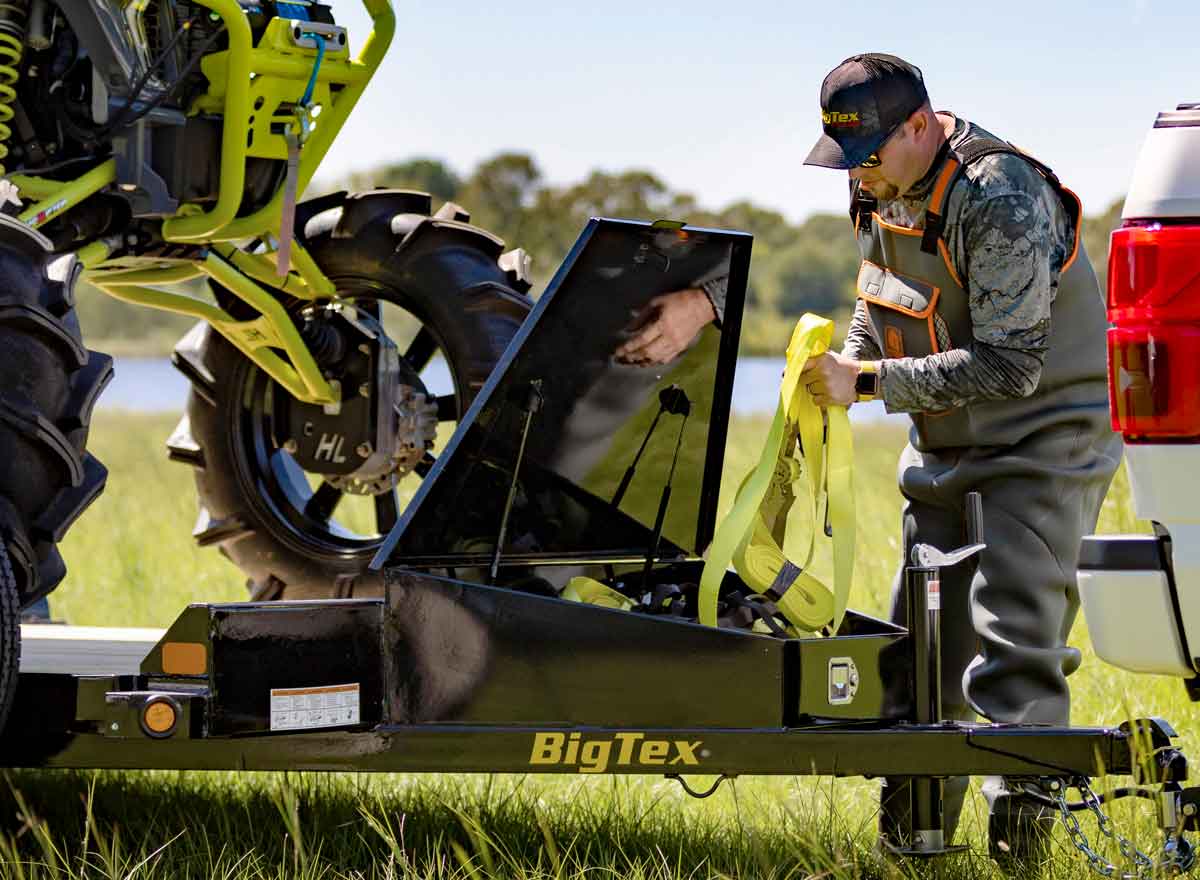

Storage Oversized Tongue Box for Storage

Model GVWR GAWR (Ea. Axle) Empty Weight Cargo Capacity Bed Length Bed Width
35UT-14 2995 lbs 3500 lbs 1500 lbs 1495 lbs 14' 83"
https://www.bigtextrailers.com/wp-content/uploads/2023/07/35UT__specdiagram.png

WARNING: This product can expose you to chemicals including Arsenic (inorganic arsenic compounds) which is known to the State of California to cause cancer and Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
